Filter series
frame plate filter

    Stainless steel plate and frame filter material: stainless steel 304
    Model: 150 type / 200 type / 300 type / 400 type
    Number of plates and frames: 10 layers
    Uses: Filter fine wine, perfume, wine and water treatment, etc.
    If you have any questions about filter ordering, malfunction or maintenance, please contact us through the following methods.
    399399好运来高手资料-ww399399com好运来论坛-399399好运来高手资料绝中 If you are in a hurry, please call us.0086-13724810788 Nicole chen

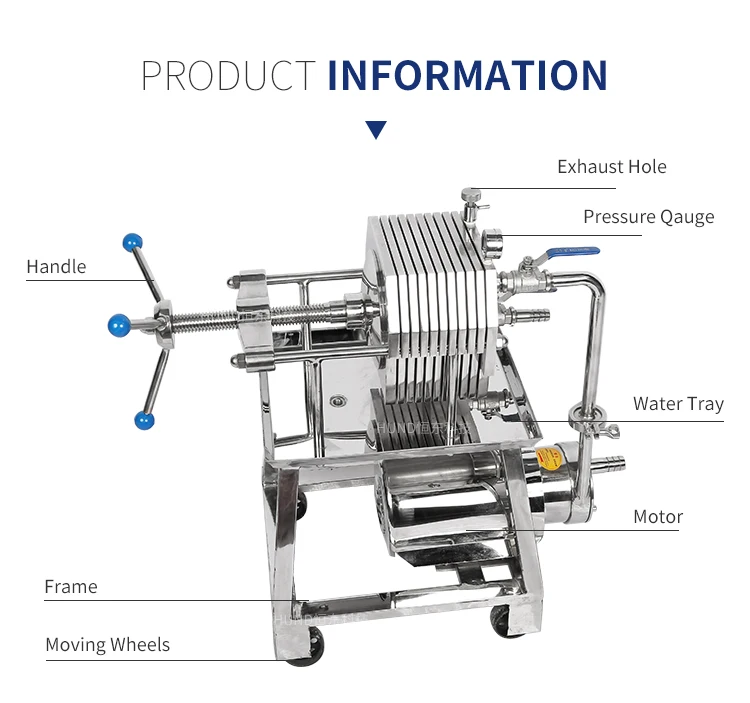

Sanitary sunflower oil/coconut oil plate and frame press filter machine





Working principle:

The equipment is multi-layer plate frame filter, which is applicable to the process operation with the requirements of fine filtration and semi-fine filtration such as purification,sterilization and defecation with sealed filtration in the liquid with low viscosity and little slagging content under the concentration of 50%. By directly adopting microporous filtration film,it can realize the sterile filtration without passing the microporous film.The equipment has characteristics such as large filtration area,large flow and wide applicable range, so it is widely used in the fields of pharmacy, chemical industry and food etc. The effect will be better if used for filtration of injection liquid medicine in pharmacy factories.





Technical Parameters:

Mode

DL-150

DL-200

DL-300

DL-400

Filter plate diameter

150

200

300

400

Layer No.

10

10

10

10

Flow

1.5T/h

3T/h

5T/h

8T/h

Power(Kw)

0.75

1.1

1.5

2.2

Equipment weight(kg)

156

175

226

257

Length

600

650

650

700

Outline dimension(width)

500

500

500

600

Height

800

900

1050

1200
